Problem with tactical overview display

[Tielman de Villiers]

Joe,

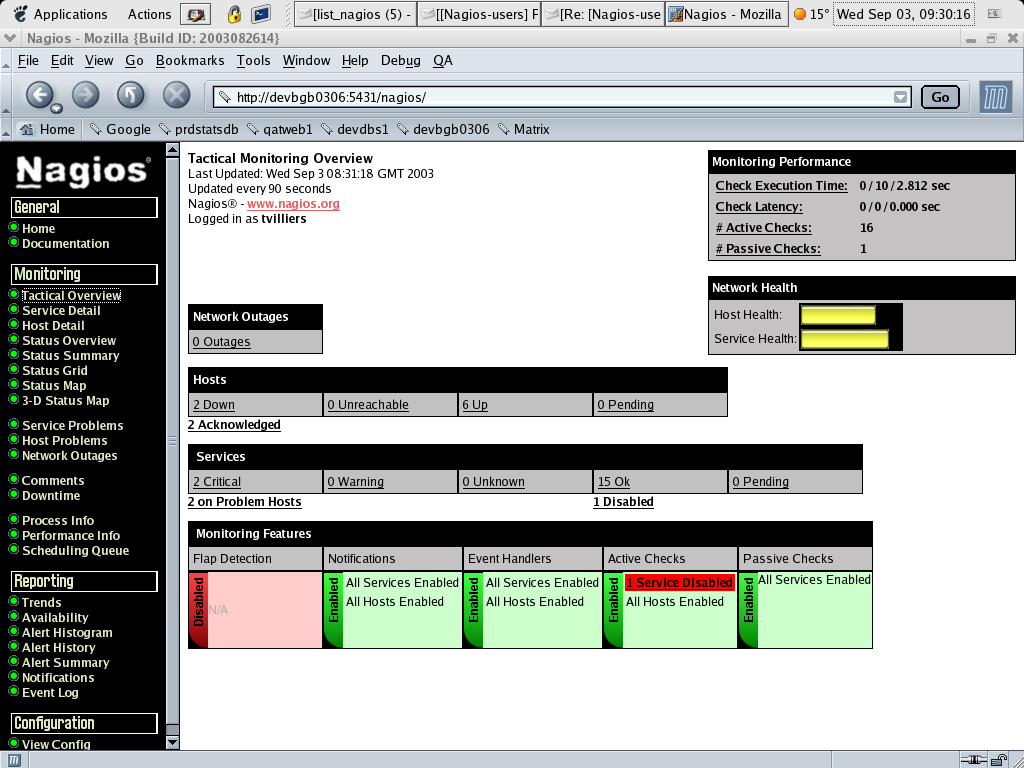

You actually have to do a whole re-hack of the HTML. I attach a
screenshot of my TAC page, after hacking, and changing the stylesheet. I
can forward you the tac.c and stylesheet if you are interested. If you
want to do the hack on your own -- have a look for a </TD></TR> which
was commented out somewhere in the original tac.c , and remove the
comments (I'm recalling from memory of about 3/4 weeks ago, but I'm sure
it was something like an un--ended TR).

Cheers

--
Tielman de Villiers
Perl Developer: Post Sales
lastminute.com

Address: 4 Buckingham Gate, London SW1E 6JP
Tel: +44(0)20.7802.4393
Fax: +44(0)20.7802.9302
email: tvilliers at lastminute.com




On Wed, 2003-09-03 at 05:43, Joe Morris wrote:
> Just installed Nagios 1.1 a month ago and going into production with it
> any day now as soon as I work out a few more kinks.  This is on Solaris
> 2.8.  This problem is cosmetic, but a nuisance and have ruled out it being
> a browser problem (tried IE, Moz and Opera).  Also found a possible bug in
> tac.cgi.
>
> When I go to the 'Tactical Overview' nearly everything displays correctly
> except for the 'Services' section.  Going from left to right underneath
> the the colspan for the Services heading the Critical cell is stretched
> WAY OUT with the warning, unknown, ok and pending cells on that same row
> squished off the screen to the right.  Unless I open the browser very
> large, I must scroll the display to see those headings.
>
> The 'Hosts' and 'Monitoring Features' display just fine (all evenly
> spaced).  What's up with the Services section being so lopsided?  It looks
> something like this...
>
> +------------------------------------------------------------+
> |Hosts                                                       |
> +------------------------------------------------------------+
> |   0 Down   | 0 Unreachable |     34 Up    |    0 Pending   |
> +------------------------------------------------------------+
>
> +----------------------------------------------------------------------+
> |Services                                                              |
> +----------------------------------------------------------------------+
> |0 Critical                         |    0    |    0    | 89 |    0    |
> |                                   | Warning | Unknown | OK | Pending |
> +----------------------------------------------------------------------+
>
> Hope that came out OK.  To get the real effect, make that Critical cell
> twice its current width and you get the idea (did not do here to keep it
> from wrapping).
>
> I tried looking at the source for that frame and saw no glaring errors.
> However, I did spot the string "stye" which looks like it was simply
> misspelled.  I located that code on lines 1186-1190 of tac.c.  I thought
> this may have had some strange effect and corrected the code, rebuilt
> tac.cgi, but it had no effect (cells still uneven).
>
