statusmap - Circular (Marked Up) background color - all green?

[Mattias Ryrlén]

Hi,

i once sent in a patch that got accepted where you can control the rgb
values of statusmap in your cgi.cfg. might be something to look up?

*Statusmap CGI Color Transparency Indexes*
Format:*color_transparency_index_r=<0-255>
color_transparency_index_g=<0-255>
color_transparency_index_b=<0-255>
*Example:*color_transparency_index_r=255
color_transparency_index_g=255
color_transparency_index_b=255
*

These options set the r,g,b values of the background color used the
statusmap CGI, so normal browsers that can't show real png transparency set
the desired color as a background color instead (to make it look pretty).
Defaults to white: (R,G,B) = (255,255,255).



On Thu, Apr 11, 2013 at 8:51 PM, Andy Rosen <arosen at altiusbb.com> wrote:

>  Hello -
>
> I am running Nagios Core 3.4.3 in two different locations.
>
> One, which is remote, monitors a dozen or so hosts and the status map is
> "normal" in circular (marked up) mode - up hosts are green, down hosts are
> red and the back ground is white.
>

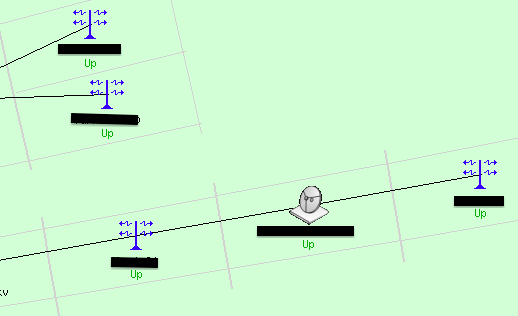

> The second is the main "internal" monitoring host is monitoring about 150
> hosts and on this status map, the background color is all green, not white.
>  The up hosts are still green and the down hosts are red, but the
> background is all the green of an up host.
>
> Why is the background not white?  I've monkeyed around with some of the
> settings, but haven't found a fix.   A small sample is below (not sure is
> the listserv will strip it or not)
>
> Other map styles are white, it just seems to be the circular (marked up) -
> which is the format that best suits our needs.
>
> Thank you!
>
>
>
>
> ------------------------------------------------------------------------------
> Precog is a next-generation analytics platform capable of advanced
> analytics on semi-structured data. The platform includes APIs for building
> apps and a phenomenal toolset for data science. Developers can use
> our toolset for easy data analysis & visualization. Get a free account!
> http://www2.precog.com/precogplatform/slashdotnewsletter
> _______________________________________________
> Nagios-users mailing list
> Nagios-users at lists.sourceforge.net
> https://lists.sourceforge.net/lists/listinfo/nagios-users
> ::: Please include Nagios version, plugin version (-v) and OS when
> reporting any issue.
> ::: Messages without supporting info will risk being sent to /dev/null
>



--
Vänliga hälsningar / Best Regards
Mattias Ryrlén
