Pppnp4nagios graph customization

[MAD]

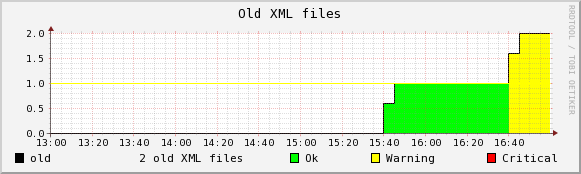

I managed to create some templates graphing in different colors according to the threshold defined with your services

This will graph in green if the value is under the warning threshold, in yellow if it is between warning and critical threshold and red if it is beyond critical threshold or unknown...

I don't know how to do this if the performance and the state are independent (for example if perf are the execution time of the check script...)

Marc-André


----- Mail Original -----
De: "mohandas k" <mohandas.k at tcs.com>
À: nagios-users at lists.sourceforge.net
Envoyé: Jeudi 9 Avril 2009 15h30:05 GMT +01:00 Amsterdam / Berlin / Berne / Rome / Stockholm / Vienne
Objet: [Nagios-users] Pppnp4nagios graph customization



Hi All,

We have installed nagios (3.0.5) on Solaris sparc box and configured rrdtool (1.2.19) along with pnp4nagios- npcd (0.4.13) for dashboard/graph.

By default we are getting following graph for locolhost free swap. I want to configure following requirements :

(1) can we add more variable (i.e say "Total Swap" ) in graph ?

(2) Can we create different-different color in graph for different-different status critical-> RED,OK->Green,Warnijng->Yellow ?

(3) last question how can we change graph updation time interval (here it's showing as 20 Minutes) however in our service definition,it's 10 Minutes

Following is default graph for your better understanding :



=====-----=====-----=====
