Pppnp4nagios graph customization

mohandas.k at tcs.com mohandas.k at tcs.com
Tue Apr 14 06:37:45 CEST 2009


Hi Mad,

I have checked and tried to changed php template  file of  " Swap
Utilization" but am not able to generate colors in graph as per service

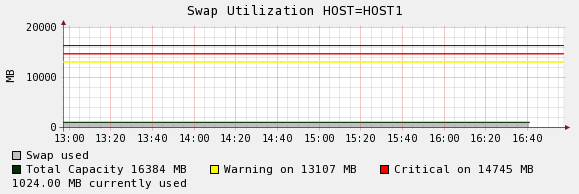

status (i.e. Green,Yellow,Red as per service status ). Have attached php
file and graph as well for your reference. obviously I have changed
hostname in PHP file.

I am not PHP expert to make changes in pnp template.

Could you please suggest what changes need to make for the same ?






Mohandas Kudva K
ASE
Tata Consultancy Services
Cell:- +91 9619144048
Mailto: mohandas.k at tcs.com
Website: http://www.tcs.com
____________________________________________
Experience certainty.   IT Services
                        Business Solutions
                        Outsourcing
____________________________________________



MAD <sri.lumpa at free.fr>
04/09/2009 08:33 PM

To
mohandas k <mohandas.k at tcs.com>
cc
nagios-users at lists.sourceforge.net
Subject
Re: [Nagios-users] Pppnp4nagios graph customization






I managed to create some templates graphing in different colors according
to the threshold defined with your services

This will graph in green if the value is under the warning threshold, in
yellow if it is between warning and critical threshold and red if it is
beyond critical threshold or unknown...

I don't know how to do this if the performance and the state are
independent (for example if perf are the execution time of the check
script...)

Marc-André


----- Mail Original -----
De: "mohandas k" <mohandas.k at tcs.com>
À: nagios-users at lists.sourceforge.net
Envoyé: Jeudi 9 Avril 2009 15h30:05 GMT +01:00 Amsterdam / Berlin / Berne
/ Rome / Stockholm / Vienne
Objet: [Nagios-users] Pppnp4nagios graph customization



Hi All,

We have installed nagios (3.0.5) on Solaris sparc box and configured
rrdtool (1.2.19) along with pnp4nagios- npcd (0.4.13) for dashboard/graph.


By default we are getting following graph for locolhost free swap. I want
to configure following requirements :

(1) can we add more variable (i.e say "Total Swap" ) in graph ?

(2) Can we create different-different color in graph for
different-different status critical-> RED,OK->Green,Warnijng->Yellow ?

(3) last question how can we change graph updation time interval (here
it's showing as 20 Minutes) however in our service definition,it's 10
Minutes

Following is default graph for your better understanding :



=====-----=====-----=====
